THERMOPLASTIC COMPOSITE

WR®300 THERMOPLASTIC COMPOSITE

WR®300 is a carbon-fiber reinforced compression molded PEEK™ often selected by pump manufacturers and users for pump bushings and case or impeller wear rings. Maximum service life is achieved in clean, lubricated and/or moist environments.

WR300 allows the pump user to increase pump efficiency by running tighter wear ring clearances while decreasing potential pump damage when pumps are cavitated or experience radial bearing failures. WR300 is API 610 approved for (stationary/stationary and rotating) wear applications.

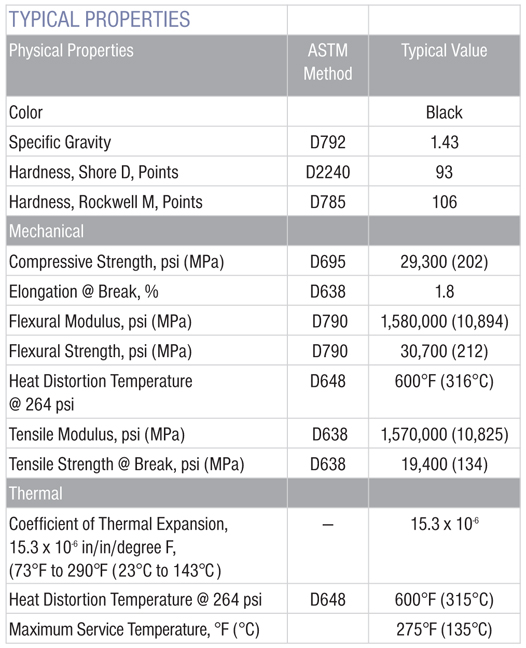

Typical Properties

Typical Properties

FEATURES & BENEFITS


Excellent chemical resistance

Nongalling/nonseizing properties

Low coefficient of friction

Impact resistance

Thermal shock resistance

AVAILABILITY


Greene, Tweed’s CPI/MRO group maintains common wear ring and bushing billet sizes in inventory. Outer billet diameters range from 1 in. to 33 in. (2.54 cm. to 83.82 cm.), and lengths of up to 8 in. (20.32 cm.) are possible.


LIMITATIONS


WR300 should not be used in abrasive medias or in press-in applications above 275°F (135°C).
