WR®525 THERMOPLASTIC COMPOSITE
WR®525 is a thermoplastic composite consisting of carbon fiber in a PEEK™matrix. Because of its unique thermal expansion properties, WR525 is ideal for use as impeller wear rings, bushings and case wear rings.
WR525 allows the pump user to increase pump efficiency by running tighter wear ring clearances, while decreasing potential pump damage when pumps are cavitated or experience down-line bearing failures. WR525 is API 610 approved for (stationary/stationary and rotating) wear applications.

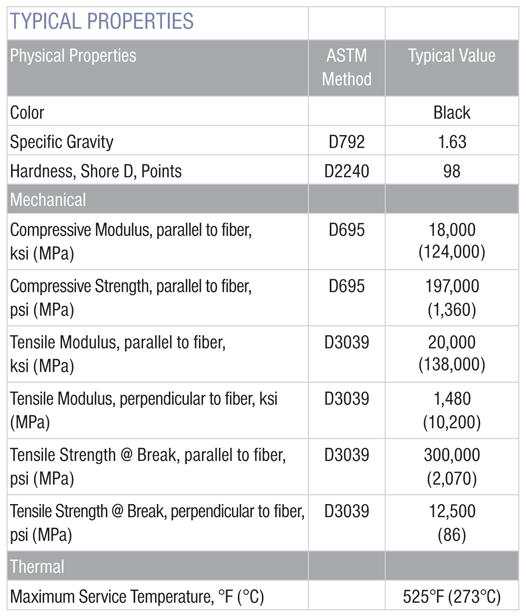

Typical Properties
FEATURES
Steel replacementExtremely lightweightLow coefficient of thermal expansionExcellent chemical resistanceNongalling/nonseizing propertiesLow coefficient of frictionImpact resistanceThermal shock resistance
AVAILABILITY
For a length of 162 inches – 164 inches, the maximum outside diameter is 60 inches.For a length of 414 inches – 416 inches, the maximum outside diameter is 24 inches.Outside Diameter Capability: GT will currently build to an outside diameter of 60 inches, and can address larger diameters on demand.Wall Thickness: Wall thickness must be greater than 0.0055 inches. ID/radial wall thickness ratio is recommended as 10:1. There is no maximum wall thickness limitation.
